產品詳情：

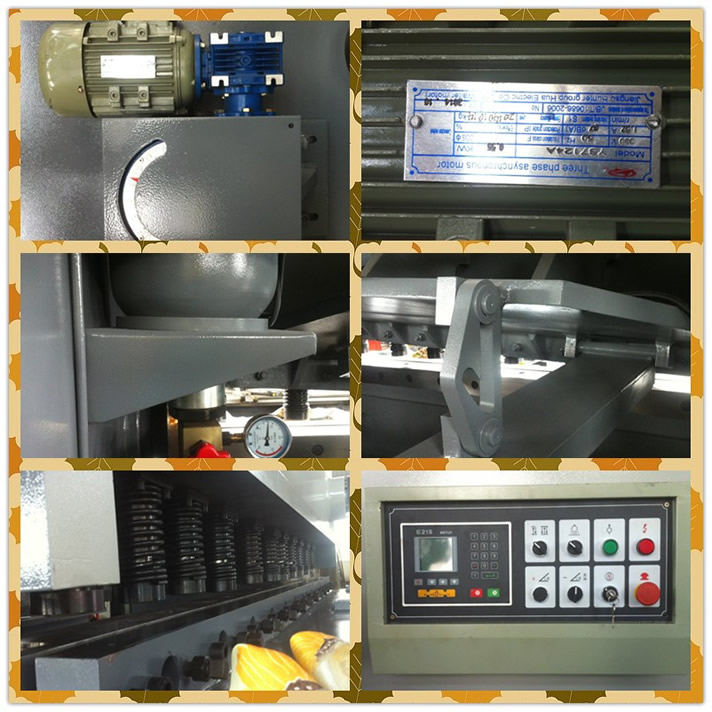

1、優質鋼材焊接，閘式刀架、強度高、剛性好、精度高 ；
2、焊后消除內應力,機身整體加工，保證了加工精度；
3、本機床設有前后擋料。后擋料采用變頻調速電機驅動，數字顯示數值。設計新穎，調節方便可靠。前擋料采用標尺計數。
4、上刀架的行程量可進行無級調節，以提高剪切下料時的行程次數。
5、機器剪切刃口處裝有安全防護柵欄，確保操作安全。
6、刃口間隙調節迅速、方便、并有刻度指示。
7、采用先進的液壓集成閥塊。結構緊湊，減少管路連接，提高了系統的可靠性與易維修性。
技術參數：
|
QC11Y Series Hydraulic guillotine beam shearing machine |
|
Specification |
Shearing
thickness
(mm) |
Shearing
width
（mm） |
Strokes
mm-1 |
Backguage
range
(mm) |
Shearing
angler
(°) |
Workbench
height
（mm） |
Main
power
（kw） |
|
QC11Y/K -6*2500 |
6 |
2500 |
10-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*3200 |
6 |
3200 |
8-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*4000 |
6 |
4000 |
7-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*5000 |
6 |
5000 |
6-25 |
20-800 |
1°30′ |
900 |
11 |
|
QC11Y/K -6*6000 |
6 |
6000 |
5-25 |
20-800 |
1°30′ |
1000 |
11 |
|
QC11Y/K -8*2500 |
8 |
2500 |
10-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -8*3200 |
8 |
3200 |
8-35 |
20-600 |
1°30′ |
900 |
7.5 |
|
QC11Y/K -8*4000 |
8 |
4000 |
7-35 |
20-600 |
1°30′ |
1000 |
15 |
|
QC11Y/K -8*5000 |
8 |
5000 |
6-25 |
20-800 |
0.5-2° |
1050 |
15 |
|
QC11Y/K -8*6000 |
8 |
6000 |
5-25 |
20-800 |
0.5-2° |
840 |
15 |
|
QC11Y/K -12*2500 |
12 |
2500 |
10-35 |
20-800 |
0.5-2.5° |
900 |
15 |
|
QC11Y/K -12*3200 |
12 |
3200 |
6-20 |
20-800 |
0.5-2.5° |
940 |
15 |
|
QC11Y/K -12*4000 |
12 |
4000 |
6-20 |
20-800 |
0.5-2.5° |
1000 |
15 |
|
QC11Y/K -12*5000 |
12 |
5000 |
5-15 |
20-800 |
0.5-2.5° |
1060 |
30 |
|
QC11Y/K -12*6000 |
12 |
6000 |
6-15 |
20-800 |
0.5-2.5° |
840 |
18.5 |
|
QC11Y/K -16*3200 |
16 |
3200 |
7-30 |
20-800 |
2°30′ |
900 |
30 |
|
QC11Y/K -16*4000 |
16 |
4000 |
6-30 |
20-800 |
2°30′ |
950 |
30 |
|
QC11Y/K -16*5000 |
16 |
5000 |
6-15 |
20-800 |
2°30′ |
1100 |
30 |
|
QC11Y/K -16*6000 |
16 |
6000 |
5-15 |
20-800 |
0.5-2.5° |
1100 |
37 |
|
QC11Y/K -20*2500 |
20 |
2500 |
9-30 |
20-1000 |
0.5-2.5° |
900 |
30 |
|
QC11Y/K -20*3200 |
20 |
3200 |
7-30 |
20-1000 |
0.5-3° |
950 |
30 |
|
QC11Y/K -20*4000 |
20 |
4000 |
6-30 |
20-1000 |
0.5-3° |
1100 |
30 |
|
QC11Y/K -20*5000 |
20 |
5000 |
5-30 |
20-1000 |
0.5-3° |
1100 |
37 |
|
QC11Y/K -20*6000 |
20 |
6000 |
5-15 |
20-1000 |
3° |
1200 |
45 |
|
QC11Y/K -25*2500 |
25 |
2500 |
5-25 |
20-1000 |
3° |
900 |
37 |
|
QC11Y/K -25*3200 |
25 |
3200 |
4-25 |
20-1000 |
0.5-3.5° |
950 |
37 |
|
QC11Y/K -25*4000 |
25 |
4000 |
3-20 |
20-1000 |
0.5-3.5° |
1100 |
37 |
|
QC11Y/K -32*2500 |
32 |
2500 |
4-12 |
20-1000 |
0.5-3.5° |
1000 |
55 |
|
QC11Y/K -32*3200 |
32 |
3200 |
4-12 |
20-1000 |
0.5-3.5° |
1100 |
55 |
|
QC11Y/K -40*2500 |
40 |
2500 |
3-10 |
20-1000 |
0.5-3.5° |
1200 |
60 |
|
QC11Y/K -40*3200 |
40 |
3200 |
3-10 |
20-1000 |
0.5-4° |
1200 |
60 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
